Beam Angles
60° x 90° (with glare-reducing lens), 100° x 100° (native beam)
Lumens per foot
233 to 424
Efficacy (lm/W) 2700 K
35.8 to 66.8
LED Channels
Red/Green/Blue/Amber
Applications
Cove Lighting, Wall Washing
Environment
Dry/Damp Location, IP20
Warranty
Input Voltage
100 to 277 VAC, auto-ranging, 50/60 Hz
Weight
0.24 kg (0.53 lb) 305 mm
0.75 kg (1.65 lb) 1219 mm
Housing Material
Plastic, white powder-coated finish
Approbations
UL/cUL, FCC Class B, CE, PSE, RCM, CCC, BIS, EAC, UA
Technologies
Luminaire Specification Sheets
In addition to the standard PureStyle Compact luminaires shown below numerous custom configurations are available. These include select single color LEDs, and custom LED mixes. Please contact your Color Kinetics Lighting sales rep. for more information.
|
Specification Sheet
|
Item Number
|
12NC
|
Spread Lens
|
Spread Lens 12NC
|
Availability
|
|---|---|---|---|---|---|
| RGBA, 100° x 100° (Native beam), High Power, 1219 mm (48 in) | 123-000028-01 | 912400136911 | Ships within 48 hours in US (while supplies last) | ||
| RGBA, 100° x 100° (Native beam), High Power, 305 mm (12 in) | 123-000028-00 | 912400136910 | |||
| RGBA, 100° x 100° with 60° x 90° glare-reducing lens, High Power, 1219 mm (48 in) | 123-000028-01 | 912400136911 | 120-000214-04 | 912400136915 | Ships within 48 hours in US (while supplies last) |
| RGBA, 100° x 100° with 60° x 90° glare-reducing lens, High Power, 305 mm (12 in) | 123-000028-00 | 912400136910 | 120-000214-01 | 912400136914 | |
| RGBW Low Power Custom Configurations available* | Contact Color Kinetics sales rep. |
*All standard lengths and beam angles available as Custom Configurations.

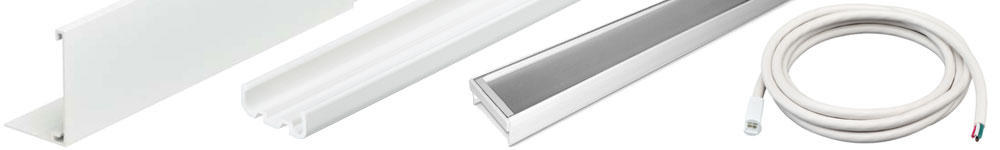

Easy Accessory options
Choose from a full line of field-installed accessories, from masking plate, mounting track, and diffusers for all PureStyle Compact luminaires. Color Kinetics high-quality accessories make project customization simple. And these optional secondary accessories—combined with precise (and simple) aiming—let you get the look and performance necessary for any project.
Accessory Specification Sheets
Showing 1-10
of 10
|
IES Files
|
Max On
|
|---|---|
| PureStyle Compact Powercore, RGBA, 100° x 100°, High Power, 305 mm (12 in) | Max On, 100° x 100°, High Power, 305 mm (12 in) |
| PureStyle Compact Powercore, RGBA, 100° x 100°, Low Power, 305 mm (12 in) | Max On, 100° x 100°, Low Power, 305 mm (12 in) |
| PureStyle Compact Powercore, RGBA, 60° x 90°, High Power, 305 mm (12 in) | Max On, 60° x 90°, High Power, 305 mm (12 in) |
| PureStyle Compact Powercore, RGBA, 60° x 90°, Low Power, 305 mm (12 in) | Max On, 60° x 90°, Low Power, 305 mm (12 in) |
|
Wiring Diagrams
|
PDF
|
|---|---|
| PureStyle Compact Powercore : Data Enabler Pro : Antumbra iColor Keypad | |
| PureStyle Compact Powercore : Data Enabler Pro : ColorDial Pro | |
| PureStyle Compact Powercore : Data Enabler Pro gen3 : Antumbra iColor Keypad | |
| PureStyle Compact Powercore : Data Enabler Pro gen3 : ColorDial Pro | |
| PureStyle Compact Powercore : Data Enabler Pro gen3 : iPlayer 3 | |
| PureStyle Compact Powercore : Data Enabler Pro gen3 : iPlayer 4 | |
| PureStyle Compact Powercore : Data Enabler Pro : iPlayer 3 | |
| PureStyle Compact Powercore : Data Enabler Pro : iPlayer 4 |
