Download Product Summary

Viewing Angles
105°, 200°
Lumens per node
35 to 87
Color Temperature
3000 K, 4000 K
Environment
IP66
Applications
Direct View
Warranty
Limited 3 year warranty
Input Voltage
24 VDC via CM-150 CA gen2 24V,
PDS-80 CA 24V,
or, sPDS-480ca 24V
Power Consumption
1.0 W per node
Weight
1 kg (2.2 lb) 4 inch spacing
1.5 kg (3.3 lb) 12 inch spacing
Housing Material
Polycarbonate
Approbations
UL/cUL, FCC Class A, CE

Specification Sheets

Luminaires

In addition to the standard Flex luminaires shown below numerous custom configurations are available. These include a wide range of node counts and node spacing, LED color temperatures, lenses, and housing colors. Please contact your Color Kinetics Lighting sales rep. for more information.


Showing 1-8 of 8
Specification Sheet PDF Download
Item Number
12NC
3000 K, Clear Flat Lens, White Housing, 4 in On-Center Node Spacing 500-000012-08 912400130627
3000 K, Clear Flat Lens, Black Housing, 4 in On-Center Node Spacing 500-000012-09 912400130628
3000 K, Clear Flat Lens, White Housing, 12 in On-Center Node Spacing 500-000012-12 912400130631
3000 K, Clear Flat Lens, Black Housing, 12 in On-Center Node Spacing 500-000012-13 912400130632
3000 K, Translucent Dome Lens, White Housing, 4 in on-center node spacing 500-000012-10 912400130629
3000 K, Translucent Dome Lens, Black Housing, 4 in on-center node spacing 500-000012-11 912400130630
3000 K, Translucent Dome Lens, White Housing, 12 in on-center node spacing 500-000012-14 912400130633
3000 K, Translucent Dome Lens, Black Housing, 12 in on-center node spacing 500-000012-15 912400130634

Easy Accessory options

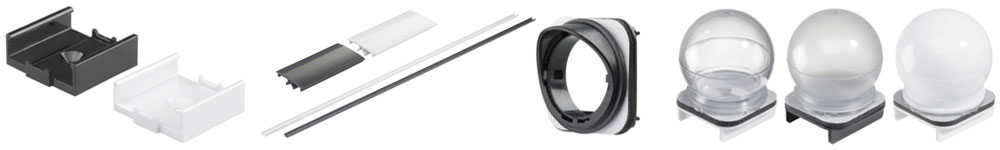

Choose from a full line of field-installed accessories, from Single Node Mounts, Marquee Dome Lenses, Glare Shields, and Track & Spacers for all Flex luminaires. Color Kinetics high-quality accessories make project customization simple.

Graze-Compact-accessories

Accessories

PDF Download
Item Number
12NC
Availability
iColor Flex LMX gen2, iW/eW Flex Compact Mounting Track, 1.2 m (4 ft), White 101-000057-00 910503700044
iColor Flex LMX gen2, iW/eW Flex Compact Mounting Track, 1.2 m (4 ft), Black 101-000057-01 910503700045 Ships within 48 hours in US
Marquee/Accessory Mounting Track, for use with Flex Compact, 1.2 m (4 ft), White 101-000057-03 910503704266
Marquee/Accessory Mounting Track, for use with Flex Compact, 1.2 m (4 ft), Black 101-000057-04 910503704267
Flex Compact/iColor Flex LMX gen2 Single-Node Mounts, 50 mounts, White 101-000058-00 910503700046
Flex Compact/iColor Flex LMX gen2 Single-Node Mounts, 50 mounts, Black 101-000058-01 910503700047
Flex Spacers, Qty 50, 102 mm (4 in), White 101-000059-00 910503700048
Flex Spacers, Qty 50, 305 mm (12 in), White 101-000059-01 910503700049
Flex Spacers, Qty 50, 102 mm (4 in), Black 101-000061-00 910503700052
Flex Spacers, Qty 50, 305 mm (12 in), Black 101-000061-01 910503700053
Marquee/Accessory Spacers, for use with iColor Flex LMX gen2, Qty 50, 102 mm (4 in), White 101-000075-00 910503704272
Marquee/Accessory Spacers, for use with iColor Flex LMX gen2 and iW/eW Flex Compact, Qty 50, 305 mm (12 in), White 101-000075-01 910503704273
Marquee/Accessory Spacers, for use with iColor Flex LMX gen2, Qty 50, 102 mm (4 in), Black 101-000075-02 910503704274
Marquee/Accessory Spacers, for use with iColor Flex LMX gen2 and iW/eW Flex Compact, Qty 50, 305 mm (12 in), Black 101-000075-03 910503704275
Flex Glare Shield Kits, Qty 50, Black 120-000179-00 912400130036
iColor Flex LMX gen2, iW/eW Flex Compact Marquee Lens Kits, Qty 50, Clear, White 999-007997-00 910503702308
iColor Flex LMX gen2, iW/eW Flex Compact Marquee Lens Kits, Qty 50, Clear, Black 999-007997-01 910503702309
iColor Flex LMX gen2, iW/eW Flex Compact Marquee Lens Kits, Qty 50, Translucent, White 999-007997-02 910503702310
iColor Flex LMX gen2, iW/eW Flex Compact Marquee Lens Kits, Qty 50, Translucent, Black 999-007997-03 910503702311
iColor Flex LMX gen2, iW/eW Flex Compact Marquee Lens Kits, Qty 50, Semi-Frosted, White 999-007997-04 910503702312
iColor Flex LMX gen2, iW/eW Flex Compact Marquee Lens Kits, Qty 50, Semi-Frosted, Black 999-007997-05 910503702313

Power/Data Supplies

See the Color Kinetics Product Guide for more information about Flex Power/Data Supply options.

PDF Download
Item Number
12NC
eW Flex SLX In-line On/Off Power Adapter 107-000008-00 910503700068
sPDS-480ca 24V 109-000026-01 912400133528
CM-150 CA gen2, DIN Rail Mount, Four-Wire Terminal, 4A 24V, IP00 109-000041-00 912400137430
CM-150 CA gen2, Surface Mount, Four-Wire Terminal, 4A 24V, IP66 109-000041-02 912400137432
PDS-80 CA 24V, Four-Wire Terminal, 4A 24V, IP66, UL, for Flex Compact, and Flex Micro, eW 109-000201-01 912400138368
PDS-80 CA 24V, Four-Wire Terminal, 4A 24V, IP66, CE, for Flex Compact, and Flex Micro, eW 109-000201-02 912400138369
PDS-80 CA 24V, Four-Wire Terminal, 4A 24V, IP66, PSE, for Flex Compact, and Flex Micro, eW 109-000201-03 912400138370
Power Supply, 150W 24V, 100-277V, IP67, UL, CE, PSE 309-000014-00 912400130538
Power Supply, 320W 24V, 100-277V, IP67, CE, PSE 309-000014-01 912400130539
Power Supply Enclosure, NEMA 3R, 15 x 3 in, North America only 320-000001-00 913710841202

Leader Cables

Leader Cable connecting all Flex Compact or Micro to sPDS-480ca
Item Number
12NC
Availability
7.6 m (25 ft), Black 108-000045-00 910503700696 Ships within 48 hours in US (while supplies last)
15.2 m (50 ft), Black 108-000045-01 910503700697 Ships within 48 hours in US (while supplies last)
30.5 m (100 ft), Black 108-000045-02 910503700698 Ships within 48 hours in US
Leader Cable connecting CM-150 CA gen2 to all Flex Compact or Micro
Item Number
12NC
4 Conductor Flex Leader Cable, 15.2 m (50 ft) w/ flying leads 108-000080-01 912400135907
4 Conductor Flex Leader Cable, 30.5 m (100 ft) w/ flying leads 108-000080-02 912400135908
4 Conductor Flex Leader Cable, 15.2 m (50 ft) w/ watertight connectors 108-000082-01 912400135910
4 Conductor Flex Leader Cable, 30.5 m (100 ft) w/ watertight connectors 108-000082-02 912400135911

*The 2-part leader cable allows flexibility with installation or maintenance challenges. Combine the Flex Dongle and the flying leads Leader Cable to connect to the CM-150 CA gen2 DIN Rail version. Combine the Flex Dongle and the watertight connectors Leader Cable to connect to the CM-150 CA gen2 Surface Mount version.

2-part Leader Cable and Dongle
Item Number
12NC
Flex Dongle Item
12NC
4 Conductor Flex Leader Cable, 30.5 m (100 ft) w/ flying leads 108-000080-12 912400137820 108-000082-00 912400137819
4 Conductor Flex Leader Cable, 30.5 m (100 ft) w/ watertight connectors 108-000082-12 912400137821 108-000082-00 912400137819
Flex Dongle 278.8 mm (10.9 in), Black 108-000082-00 912400137819


Downloads

Revit Files
eW Flex Compact Revit File
Drawings
PDF
DXF
DWG
RFA
Flex Mounting Track   DXF
Flex Single Node Mount       RFA
Flex with Flat Lens and Dome Lens, and Accessories - Full Set PDF DXF DWG
Flex with Narrow Beam Lens - 45 Degree Top and Bottom View   DXF
Flex with Narrow Beam Lens and Accessories - Full Set PDF   DWG
Flex with Narrow Beam Lens - Top and Side View   DXF
Flex with Narrow Beam Lens, with Single Node Mount and with Mounting Track   DXF
Spacer and Single-Node Mount   DXF
